Keys

Every TV you add in Home also shows up in the Apple TV Remote on your iPhone and iPad. You can use it like the physical remote of the TV: move through menus, select, go back, play and pause.

Keys decide which TV command each button of that remote sends. Every button already has a default, so you only change a key when you want a button to do something else.

WARNING

This does not add buttons to the remote. Apple decides which buttons it shows. The plugin only chooses the command each button sends.

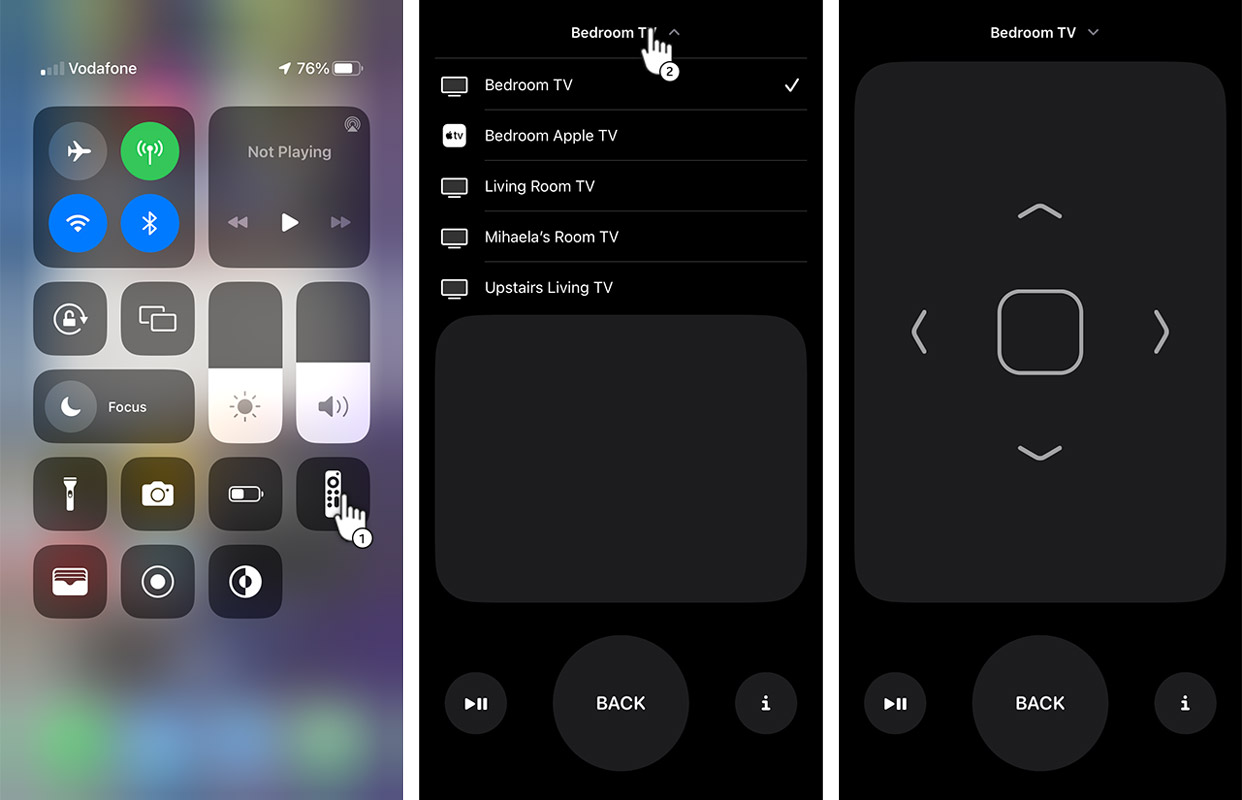

Open the remote

Open Control Center by swiping down from the upper-right corner and tap the remote icon. Choose the TV at the top of the remote.

If the remote icon is missing, add it to Control Center. On iOS 18 and newer, touch and hold an empty area of Control Center, tap Add a Control and pick Apple TV Remote. On older versions, add it in Settings → Control Center.

While the remote is open, the volume buttons of the iPhone change the TV volume. See Volume.

Default mapping

Every button already has a command. Add a key to the config only when you want a different one. Leave a field empty in the settings screen to keep the default.

The command list is on the Commands page.

Button	Command
ARROW_UP	KEY_UP
ARROW_DOWN	KEY_DOWN
ARROW_LEFT	KEY_LEFT
ARROW_RIGHT	KEY_RIGHT
SELECT	KEY_ENTER
BACK	KEY_RETURN
EXIT	KEY_RETURN
PLAY_PAUSE	KEY_PLAY_BACK
REWIND	KEY_REWIND
FAST_FORWARD	KEY_FF
INFORMATION	KEY_INFO

Changing a button

Global keys, set on the Remote Keys tab of the dashboard, apply to every TV. Keys on a TV's own Remote Keys tab replace the same button for that TV only. The other buttons keep the global value, or the default. A mapping on one TV never changes another TV.

In the settings screen, an empty field shows the value it falls back to as a placeholder.

{
  "name": "Bedroom TV",
  "ip": "10.20.30.40",
  "mac": "A0:B1:C2:D3:E4:F5",
  "keys": {
    "SELECT": "KEY_INFO"
  }
}
